Big-bore cylinder and piston set 1910cc

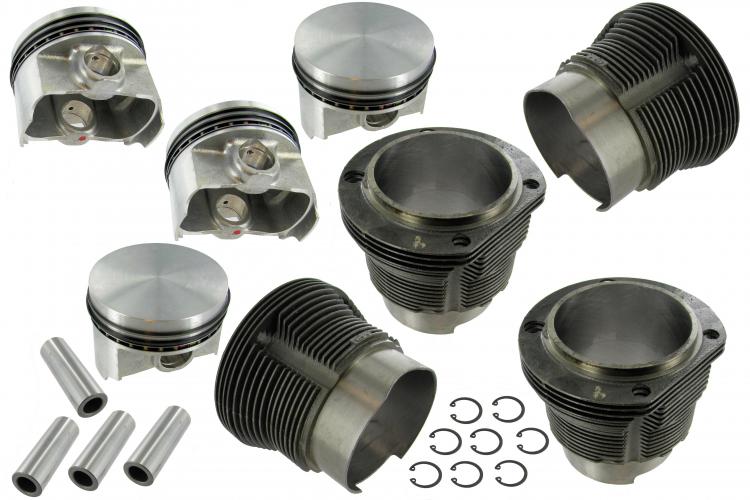

Complete big-bore cylinder and piston set (1910cc) for Type-4 engines, including 4 pistons, 4 cylinders, 4 piston rings, 4 gudgeon pins and circlips. The stated dimensions indicate the required space in the crankcase/cylinder head; the actual cylinder size is a fraction smaller. For a larger displacement, the crankcase must be machined (bored out).
Features
- ✓Applicable to Type-4 engines
- ✓Delivered complete: 4 pistons, 4 cylinders, 4 piston rings, 4 gudgeon pins and circlips
- ✓Cast iron cylinders
- ✓Pistons made of hypereutectic aluminium alloy
- ✓Bore: 96 mm
- ✓Stroke: 66 mm
- ✓Crankcase Ø: 100 mm
- ✓Cylinder head Ø: 105 mm
- ✓Compression height: 41.3 mm
- ✓Gudgeon pin Ø: 24 mm
Technical specifications
| Application | Type-4 engines |
| Bore | 96 mm |
| Stroke | 66 mm |
| Crankcase Ø | 100 mm |
| Cylinder head Ø | 105 mm |
| Compression height | 41.3 mm |
| Gudgeon pin Ø | 24 mm |
...
