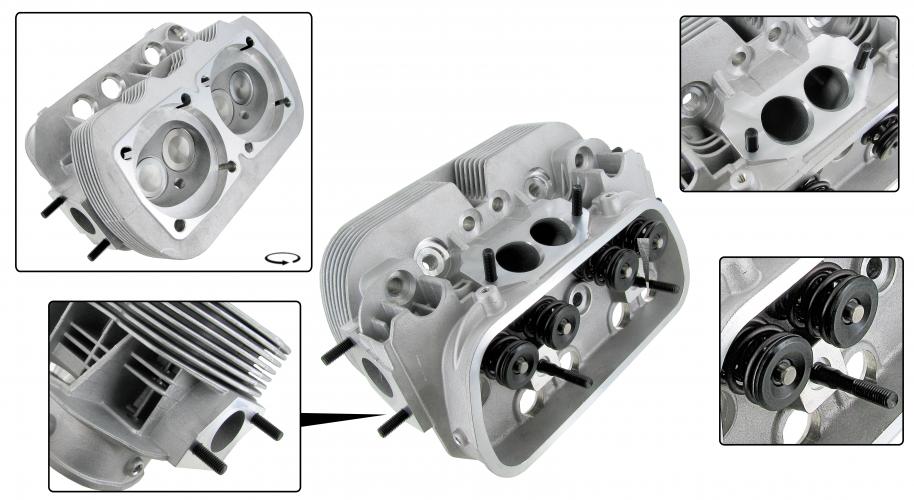

EMPI GTV-2 big bore cylinder head
€624,17
Sale price
€624,17
Regular price
Skip to product information
href="/products/vw-1874?variant=58599570899276"
class="link"
>EMPI GTV-2 big bore cylinder head
EMPI GTV-2 big bore cylinder head
€624,17
Sale price
€624,17
Regular price
EMPI GTV-2 big bore cylinder head
EMPI GTV-2 cylinder head: no Autolinea base, but a completely new design developed by EMPI. The area between the valve and spark plug hole is reinforced, allowing 12 mm spark plugs to be used. Compared to the original, the GTV-2 is 50% stronger and has 44% more cooling surface. Intake and exhaust ports are 20% larger than original, with extra material for possible further enlargement. Supplied complete with stainless steel valves and dual valve springs with chromoly retainers.
Features
- ✓Applicable to Type-1 dual-port engines, Type-3 dual-port engines, CT/CZ engines
- ✓50% stronger and 44% more cooling surface than the original
- ✓Intake and exhaust ports 20% larger than original
- ✓Stainless steel valves with dual valve springs and chromoly retainers
- ✓Uses 12 mm spark plugs
- ✓Note: reinforced rocker shafts and hardened valve stem caps required (not included, order separately)
- ✓Supplied ready to install — always check for valve leakage before installation
Technical specifications
| Application | Type-1 dual-port engines, Type-3 dual-port engines, CT/CZ engines |
| Cylinder head Ø | 101 mm |
| Bore | 94 mm |
| Combustion chamber | 58 cc |
| Valves | 40 x 35.5 mm stainless steel |
| Valve springs | Dual |
| Brand |
 EMPI
|
...
Product Information (GPSR):
VintageDub ·
Raoul Wallenbergstraat 32, 7557 ZB Hengelo, NL ·
info@vintagedub.nl
Important to know before you order
Always have parts fitted by a qualified professional. Installation and fitting of our parts must always be carried out by a qualified, competent mechanic. Parts may be supplied without a separate fitting manual — professional installation remains required regardless.
Always check beforehand. Before fitting a part, check it for visible damage or deviating dimensions/specifications. If in doubt, do not fit the part and contact us instead.
Does it fit your vehicle? Our parts are developed for the specifically listed models and applications. Verifying this beforehand is your own responsibility, for example via chassis number, year of manufacture, or manufacturer details.
Laws and regulations. Check that the chosen part meets the vehicle manufacturer's requirements as well as the legal regulations applicable in your country, including any applicable inspection standards.
Liability. Damage or unsafe situations arising from installation by unqualified personnel or incorrect use fall outside our liability.
Returns. Parts that have already been fitted, installed, or used unfortunately cannot be returned.
By ordering and fitting a part, you confirm that you have read and accepted these terms.
